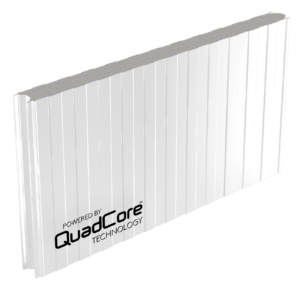

Insulated sandwich panels
Insulated sandwich panels for cold rooms Refrigeration and freezing, which comply with French law AVIS tecnique with polyurethane foam insulation and the ability to comply with fire regulations Euroclasse BS2D0.
Floor reinforced phenolic
Previous
Next
Floor reinforced phenolic
Especially suitable for cold floors.
He is a board coated with a dark brown laminate glued with phenolic resin resistant to weather and abrasion.
The foundation board is birch. 9 mm nominal thickness.
Static load estimated 5 mt.
| FEATURE | Value obtained PANEL DC | Value due UNE 41-950 |
| Compressive strength (10% deformation) | 0,185 N/mm2 = 1,89 kg/cm2 | ≥ 0,10 N/mm2 |
| Compression modulus of elasticity | 5,24 N/mm2 | ≥ 3 N/mm2 |
| Shear strength | 0,187 N/mm2 | ≥ 0,10 N/mm2 |
| Module constant effort | 3,14 N/mm2 | ≥ 2 N/mm2 |
| Tensile strength perpendicular to the cover layers | 0,132 N/mm2 | ≥ 0,10 N/mm2 |
| Tensile modulus of elasticity | 4,37 N/mm2 | ≥ 3 N/mm2 |
| Density Foam | 40,6 kg/m3 | ≥ 38 kg/m3 |
